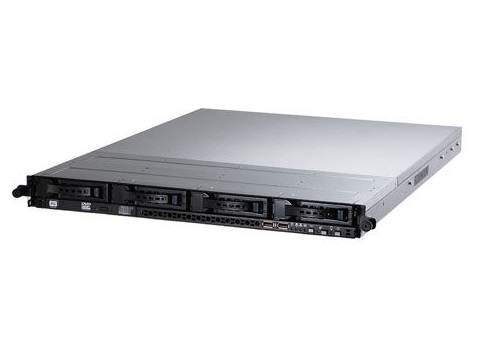

Rack-optimized 1U server designed for storage and networking flexibility
- Powered by the latest 2nd Gen Intel Xeon Scalable processors
- 165W CPU with 16 DIMM support
- Designed for flexible storage with four SAS or SATA drives
- Ultrafast connectivity with OCP 2.0 Mezzanine card support
- Two M.2 slots accommodate 22110-size SSDs for faster boot speed
- Exclusive Thermal Radar energy-efficiency technology reduces fan power consumption by up to 20%
- Easy maintenance and debugging with internal USB 3.0 port and microSD card support for easier access
- Complete IT infrastructure management with ASMB9 out-of-band remote management and in-band ASUS Control Center
Powered by the latest 2nd Gen Intel Xeon Scalable processors
RS500-E9-PS4 is built on the latest 2nd Gen Intel Xeon Scalable processors to deliver incredible 1U server performance, packing incredible power into minimal space. RS500-E9-PS4 offers breakthrough performance with the latest Intel Optane™ DC persistent memory with an over 88% gain in input/output operations per second (IOPS) compared with the same configuration in SSD. Featuring the latest Intel Deep Learning Boost technology to enhance deep learning capabilities, RS500-E9-PS4 achieves a 3.1X performance improvement in the ResNet-50 and SSD VGG-16 models, fully demonstrating the inference capability of the new platform.
Flexible expansion for better storage and networking
RS500-E9-PS4 features one PCIe x16 and one PCIe x8 slots to deliver parallel computing power and one OCP 2.0 Mezzanine connector to support high-speed LAN card. This flexibility supports diverse storage and networking applications and ensures future expandability and high scalability in a 1U server.
RS500-E9-PS4 fits four 3.5-inch hot-swappable 12Gbps SAS or 6Gbps SATA drives. Two M.2 slots accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds.
Exclusive Thermal Radar technology for energy efficiency
RS500-E9-PS4 features ASUS-exclusive Thermal Radar technology with ambient sensors placed in CPU, memory, NVMe, SSD, OCP mezzanine connector for internal and external temperature monitoring, and dynamic fan-curve adjustment, which lowers fan power consumption by up to 20% and reduces total cost of ownership — ideal for data centers with extreme workloads.
Exclusive Performance Boost technology
ASUS features exclusive Performance Boost technology to achieve peak server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for time-sensitive applications such as financial services or data center operations.
Comprehensive IT infrastructure management
RS500-E9-PS4 features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
