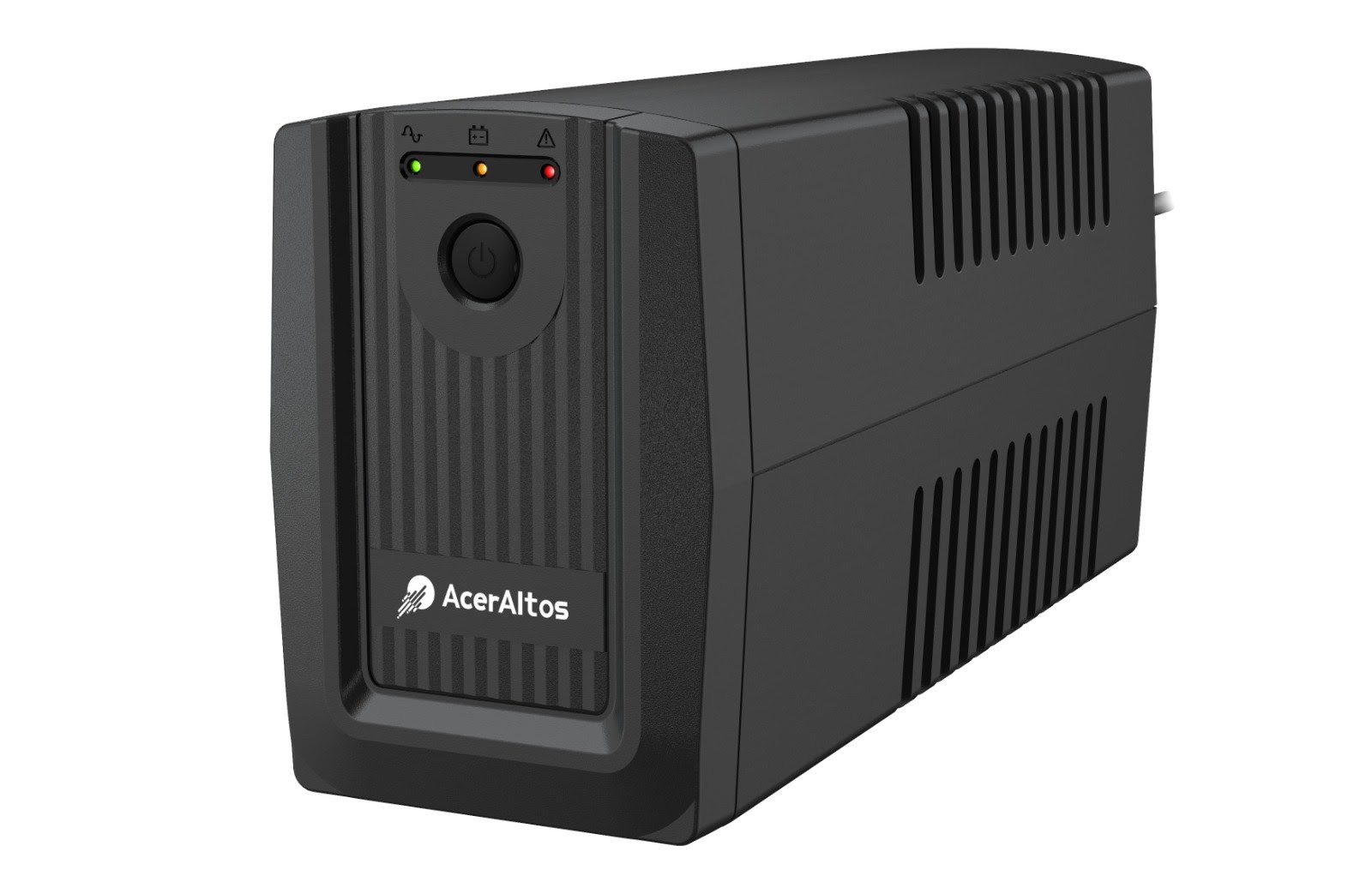

UPS Interactive Line
| Model Name | City850 |
| Capacity | 850VA/480W |
| PF | 0,6 |
| Nominal Voltage | 220-240VAC |
| Voltage Range | 140~300Vac |
| Frequency Range | 50/60Hz （Auto Sensing） |
| Output voltage | 220-240VAC |
| Boost Ratio | 1.2/1.4 |
| Buck Ratio | 0,85 |
| Output Voltage Range(batt.mode) | ±10% |
| Frequency Range(batt.mode) | 50/60Hz +/- 1% |
| Transfer time | 4ms Typical |
| waveform (batt.mode) | Simulated Sine-wave |
| Outlet Type | UN(2) |
| Full Protection | Overload, Short Circuit, Over discharge and Over charge. |
| Line mode overload | >(110%±10)% fault after alarm 1min >(120%±10)% fault immediately |
| Battery mode overload | >(110%±10)% fault after alarm 1min >(120%±10)% fault immediately |
| Battery Voltage | 12V |
| Battery type&number(CB) | 12V 9AH x 1 |
| Typical Backup Time(Based one PC) | 31mins @ 1 PC Load With 15” moniter |
| Typical Recharge Time | 8hours to 90% of capability |
| Display | LED |
| Alarm | Battery mode:
Sounding every 30 seconds Low battery: Sounding every 2 seconds Over load: Sounding every 0.5 seconds Fault: Continuous sounding |
| Dimension(W * H * D)(mm) | 96*138*286 |
| Net Weight (kgs) | 4,8 |
| Temperature & Humidity | 0℃ to +40℃, 0 to 90% Relative Humidity (Non-condensing) |
| Noise Level | Less than 40dB |
| Carton gross weight | 19.8kg |
